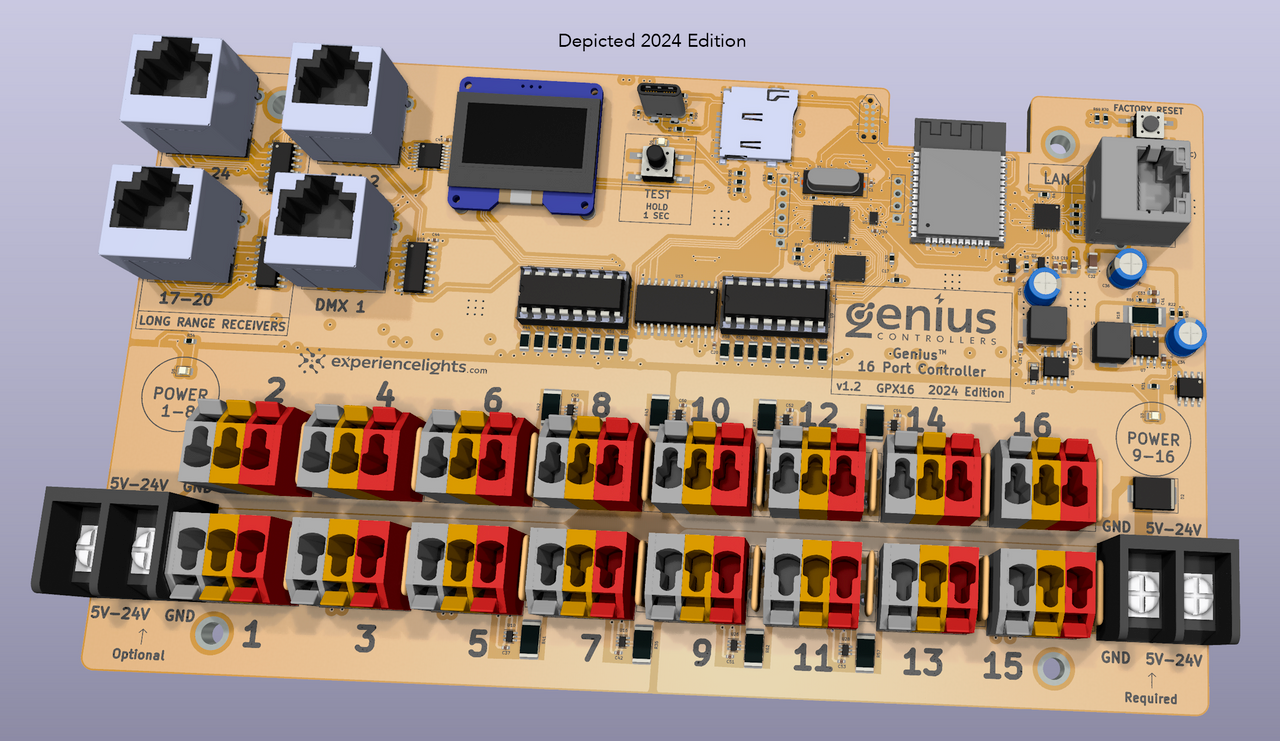

Features:
- 1 Ethernet Port
- 16 x 3-pin connectors Clever Lock connectors
No phoenix connectors or screw down terminals. - 16 x automatically resettable fuses (no replacing blown fuses)
- Full range 5V-24V supported voltage
- Supported protocols: DDP, E1.31, ArtNet
- Outputs the most common 3-wire WS281X pixel protocol.
- 2 independent power input banks, with reverse polarity protection. (5V-12V 2023 Edition, 5V-24V 2024 Edition)
- 2 x RJ45 ports for long range receivers
- 2 x RJ45 ports for DMX output
- Configuration can be done via your smartphone, tablet or PC over a wifi or wired connection
- Per port current monitoring (RTCM: Real time current Monitoring)
- Per port pixel counting
- SD card slot for standalone operation or to operate as FPP remote.
- Simple & fast over-the-air updates; with ability to easily roll back to previous firmware versions
- Rich JSON API
- Built-in test mode animations
- Seamlessly control up to ~10,000 pixels using E1.31/ArtNet, or ~20,000 pixels using DDP.
- No banks or groups. Pixels can be distributed however you’d like on any outputs, with any number of pixels assigned to each port.

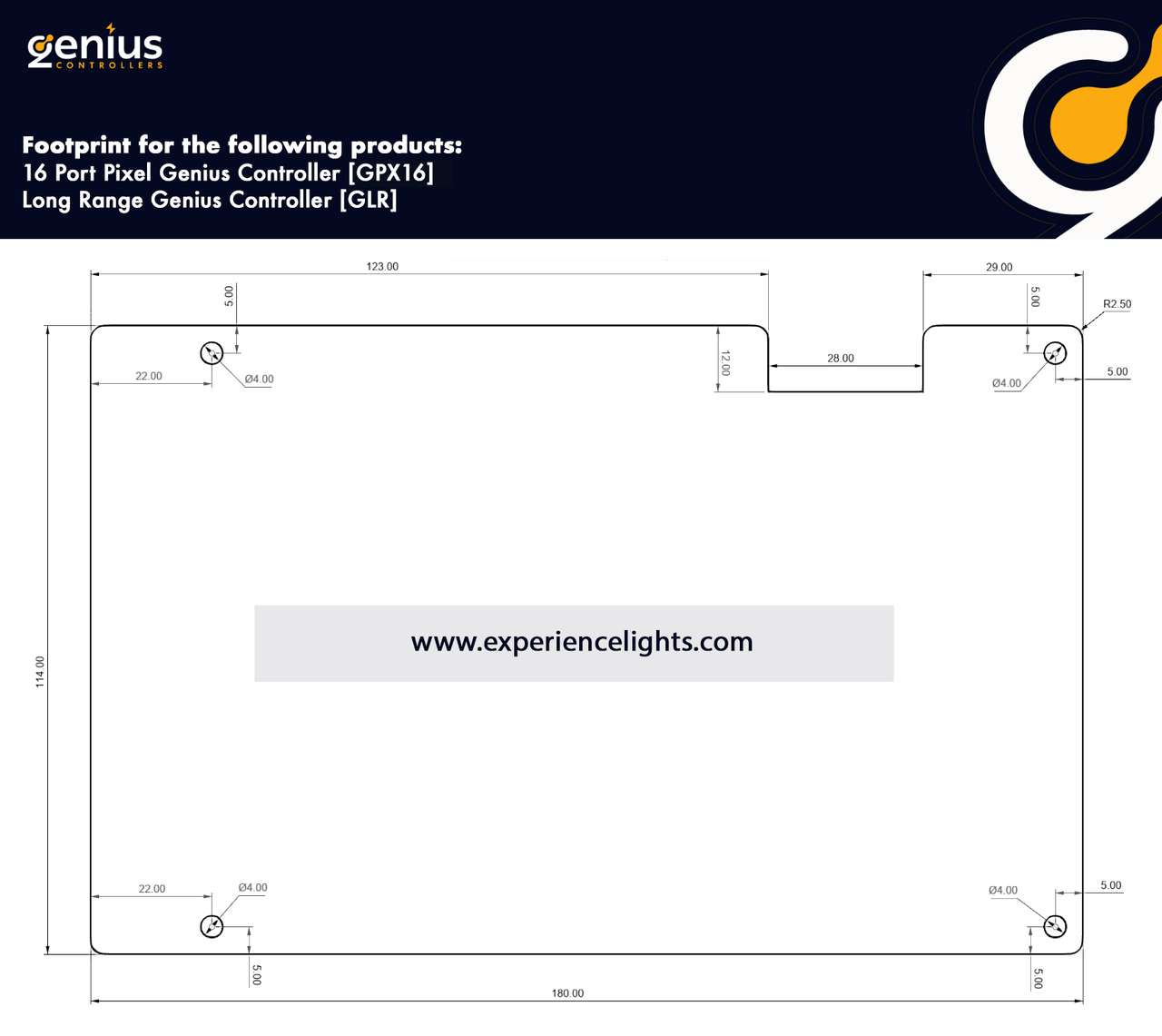

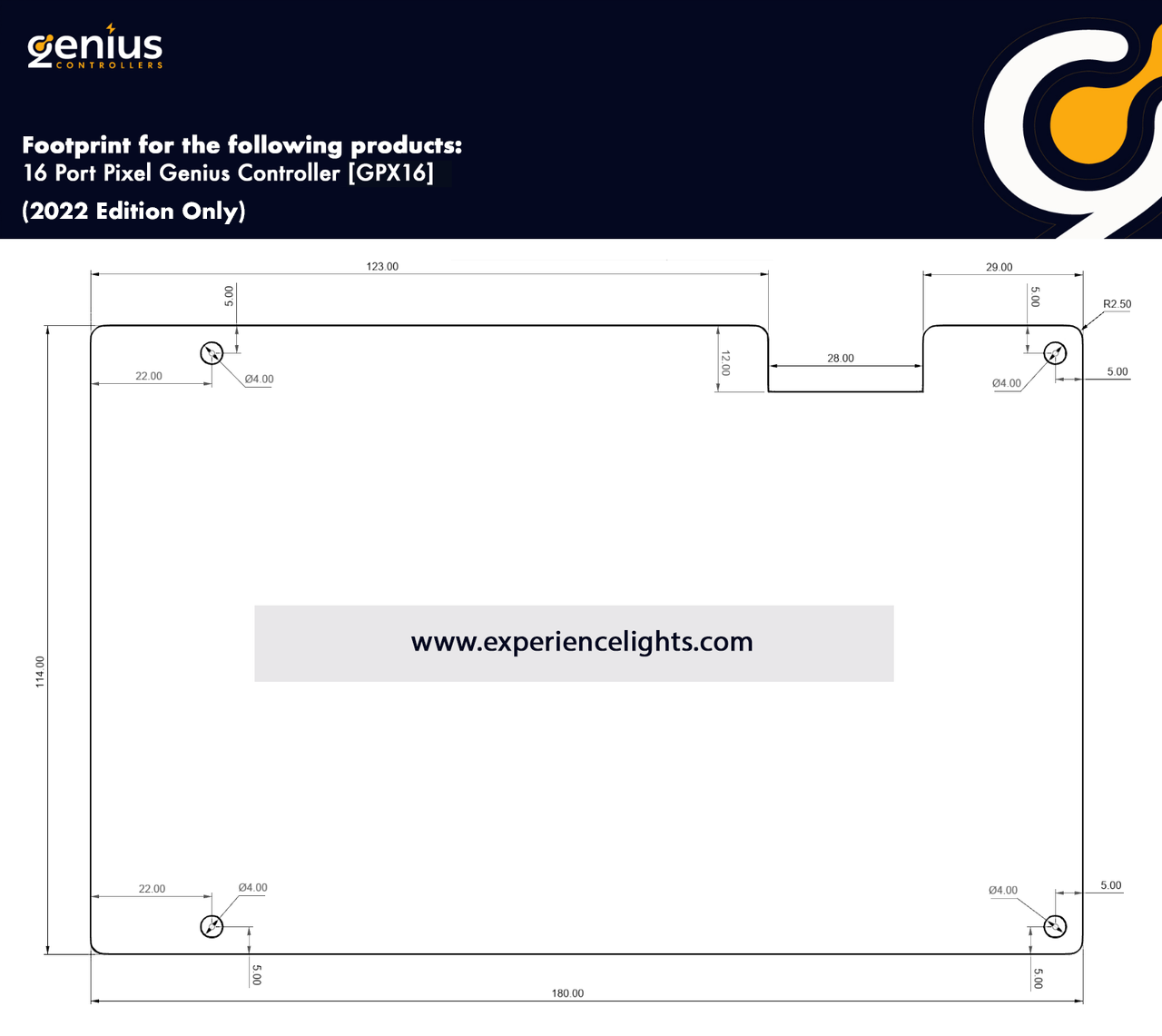

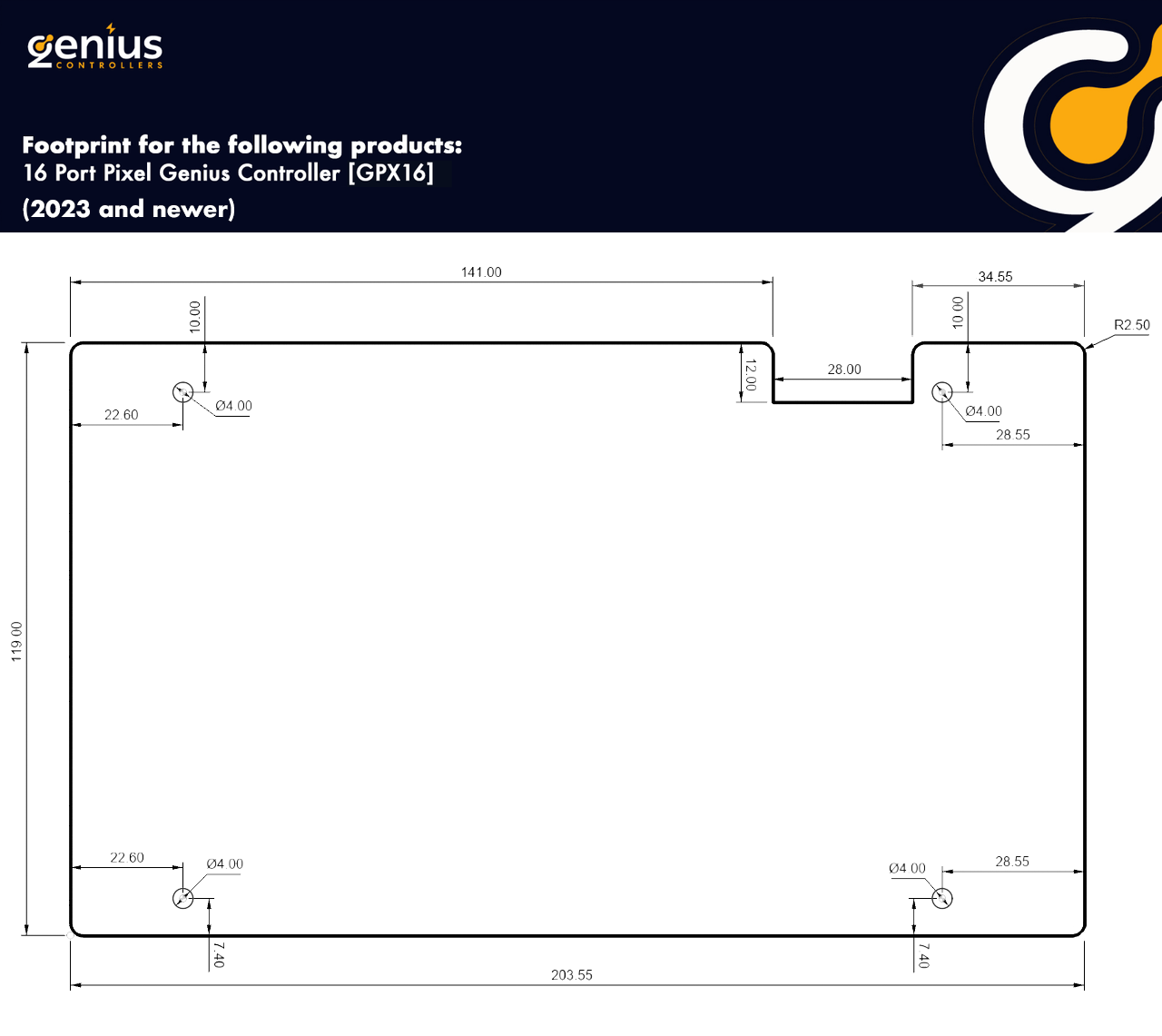

Mounting plates available from Wired Watts
Firmware Updates
Instructions
https://experiencelights.com/firmware
Master Genius Firmware List
https://docs.google.com/spreadsheets/d/1EpIc1IoBcz8VZ_v9NqO6HwNh3JkDPr5gPylhlOVwKck/edit?usp=sharing
