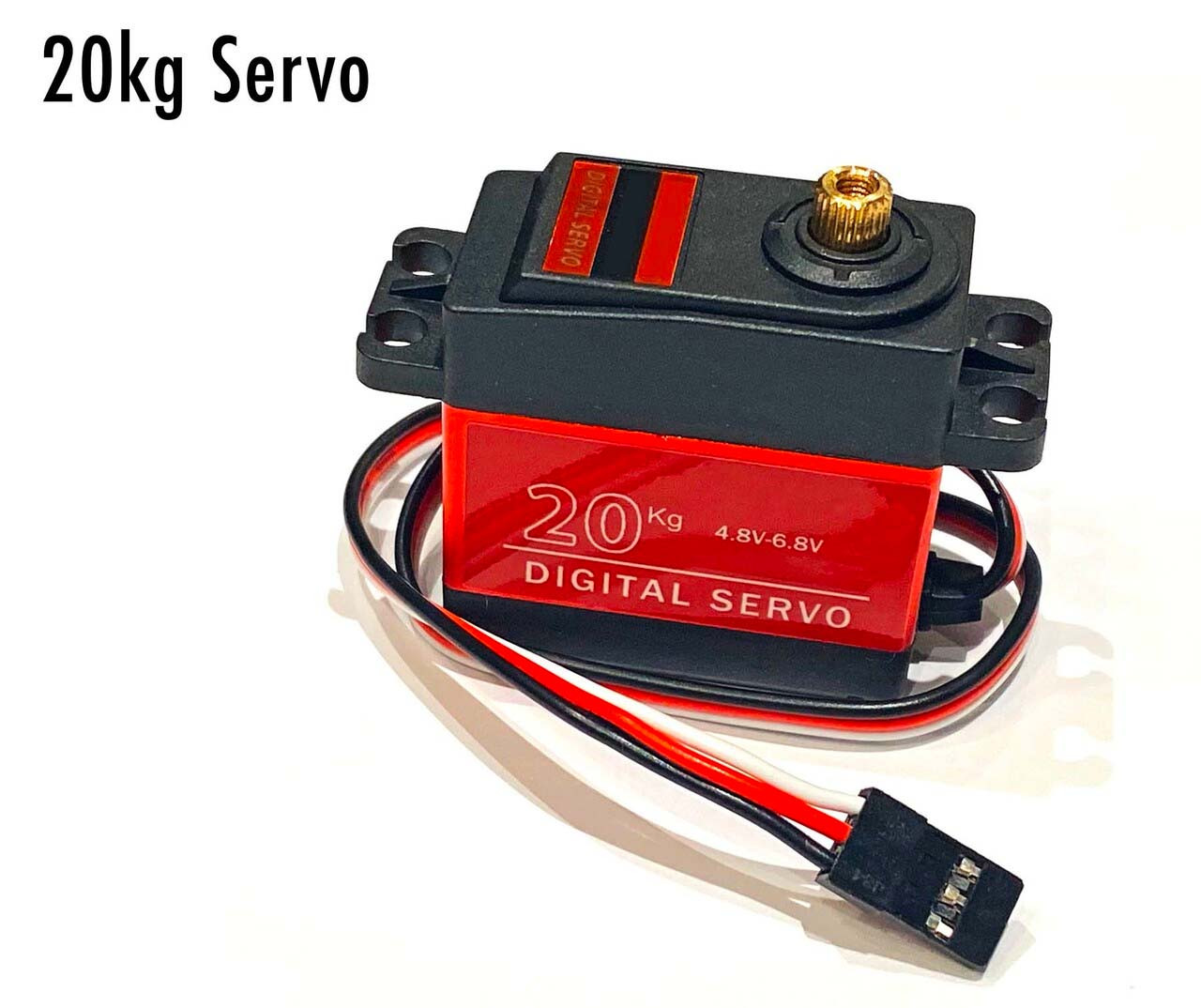

This is a high performance digital servo that can be used to make your props move.
This servo has all metal gears, and water intrusion protection for a rating of IP66. While we call this unit water resistant, we still do recommend protecting your servos from the elements to maintain a long service life.
When using the Pixel2Servos12 product, make sure and set the frequency on the PCB to “200hz” which will provide a faster feedback response.
| Type | Digital Servo |
| Operating Voltage | 4.8V – 6.8V DC |
| Weight | 2.12 oz |
| Speed | (5V) 0.16 sec to 60° (6.8V) 0.14 sec to 60° |
| Operating Frequency | 50hz – 200hz |
| Pulse Width | 500 – 2500 µsec / 2ms |
