About Genius PRO

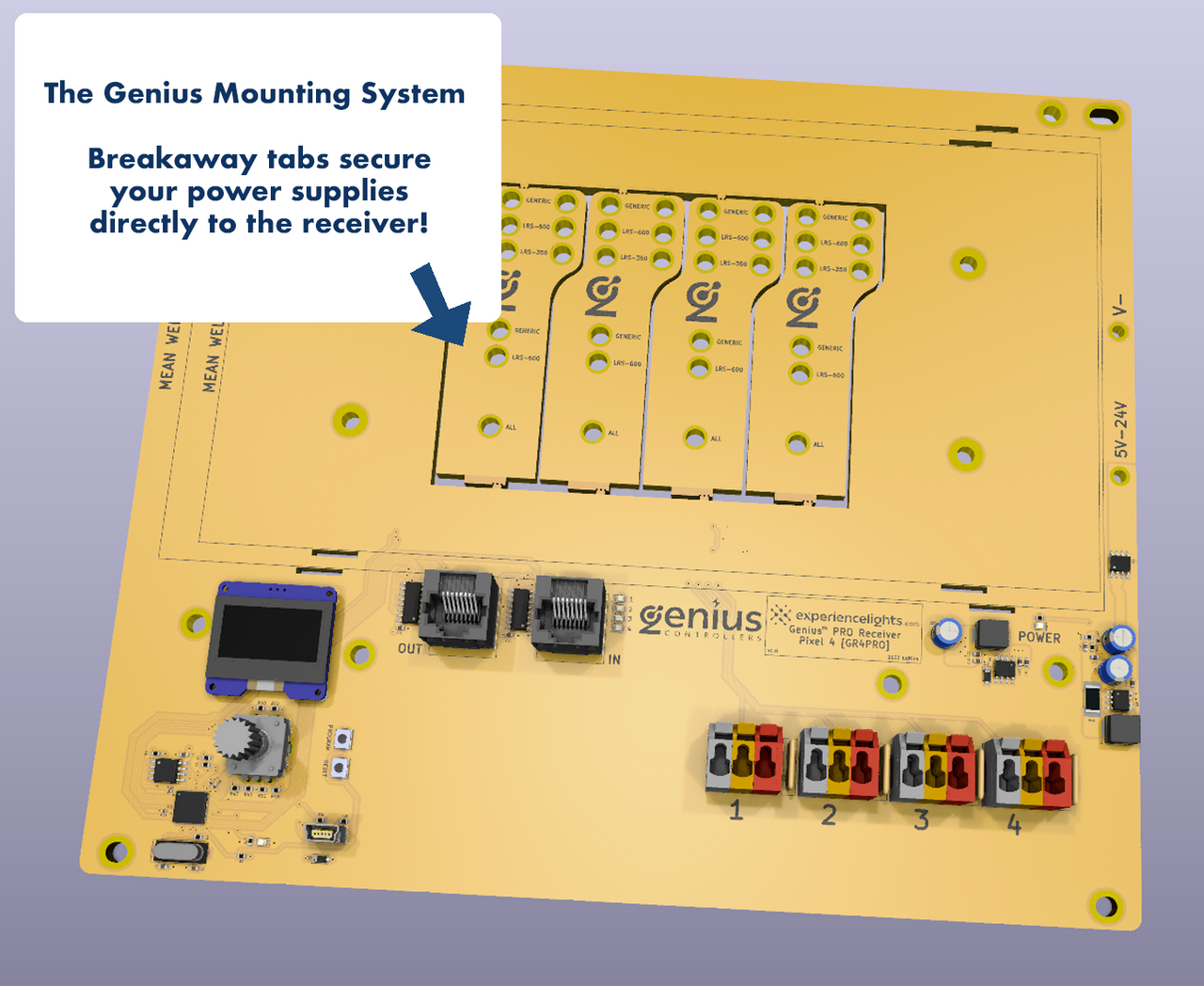

The Genius PRO series of products features the first of its kind Genius Mounting System; this allow for 1 or 2 power supplies to be mounted directly to the circuit board. By incorporating the mounting plate, power supply brackets, and DC wiring harness into one product, setup has never been faster or easier. Genius PRO features 4 break-away tabs on the bottom of the circuit board which, when used, allow stacking of 2 supplies (not included) on top of each other.

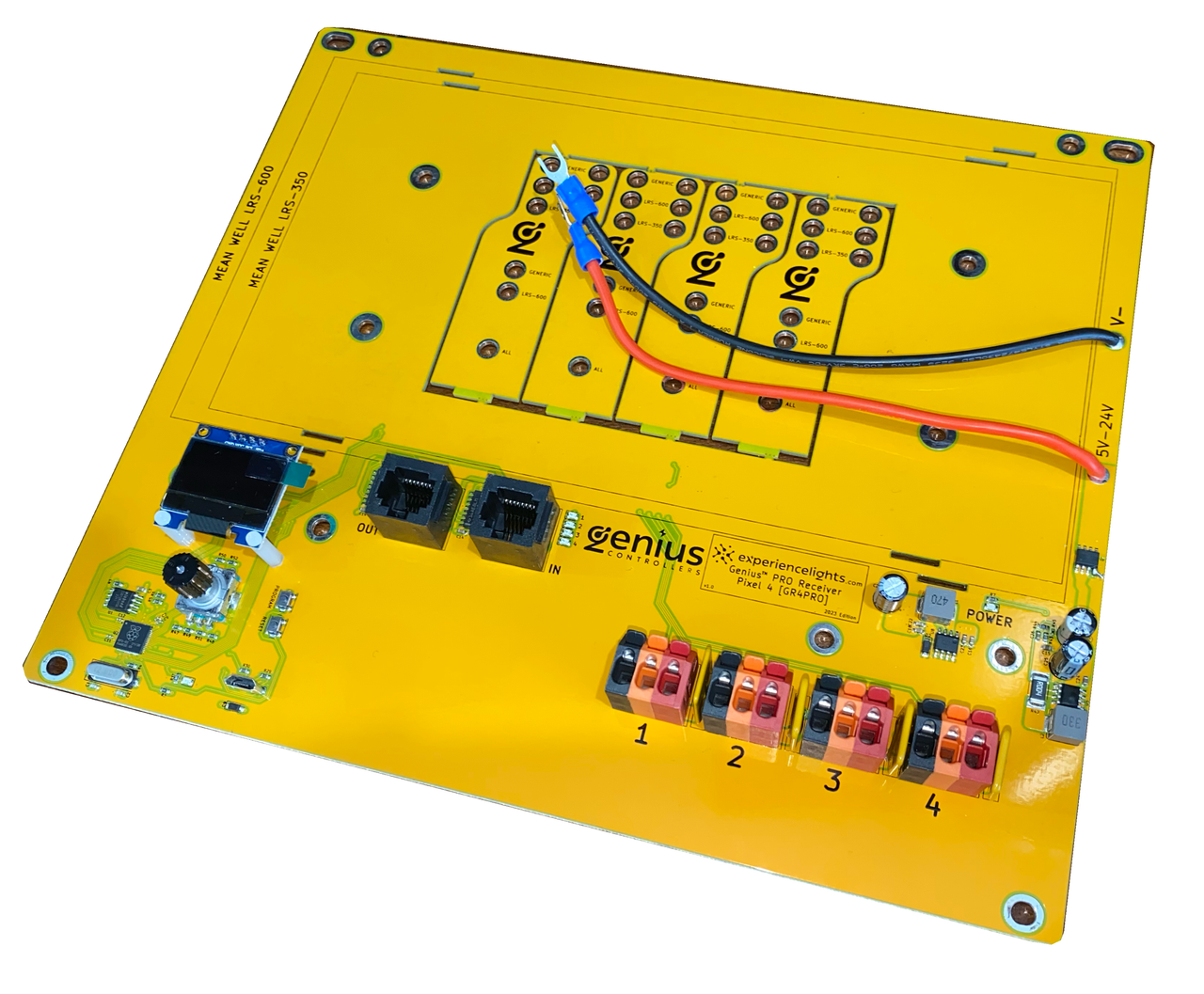

Also included with Genius PRO are pre-attached 12AWG 6″ black and red wires with crimp connectors on the ends; this allows for fast connections to your power supply’s screw terminals, for a max current carrying capacity of 25A.
Supported Enclosures
- Bud Industries NBF-32022 (preferred)
- Your Pixel Store Medium Enclosure (WC-004-2)
- CG-1500
Supported Power Supplies (not included)
Mean Well LRS-350
Mean Well LRS-600

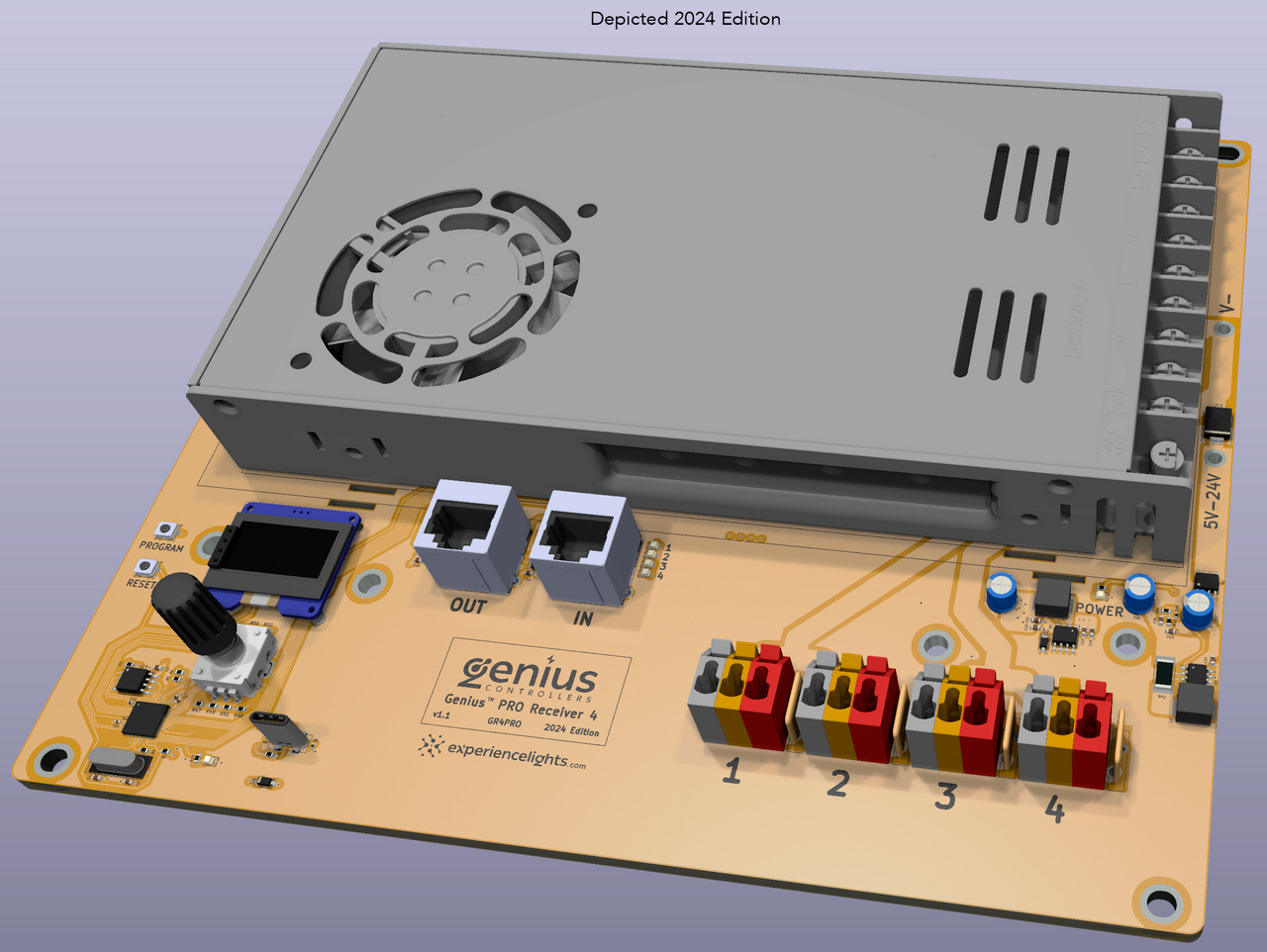

New in the 2024 Edition:
- Solder build-up removed from back side.
- RJ45 jacks changed from plastic to stronger Metal RJ45.
- USB jack changed from USB Micro to USB-C.
- Holes widened for easier mounting.
- Rotary dial updated to have “detents” that click while you spin for better control.
Features:
- Genius Mounting System, to mount 1 or 2 power supplies to the circuit board
- 1 x 6″ black wire and 1 x 6″ red wire with connectors pre-attached to the ends for quick power supply hookup
- 2 x RJ45 ports for long range connection; supports daisy-chaining
- Full range 5V-24V
- Plug-and-play operation, no switches or hardware configuration required.
- Default auto detection of “Dumb”, “FPP” (Falcon Pi Player) or “Smart V3 Falcon” or “Smart V4 Falcon” or “Genius”
- Default auto positioning determines the receiver’s “place in line”. Will detect if it’s an A-F receiver.
- Built-in termination
- OLED Display with rotary to configure brightness, select test modes, and see more in depth information regarding integrity of the data signal.
- 4 x 3-pin, extra large, color coded Clever LockTMÂ connectors (no phoenix connectors or screw down terminals)
- 4 x automatically resettable fuses (no replacing tripped fuses)
- Seamless integration with existing differential driving controllers (Dumb, FPP, Falcon V3 & V4). No system lock-in. Mix and match with other equipment
- Works with WS281X differential signals only
- MAX 5A per output
Firmware Updates
Instructions
https://experiencelights.com/firmware
Master Genius Firmware List
https://docs.google.com/spreadsheets/d/1EpIc1IoBcz8VZ_v9NqO6HwNh3JkDPr5gPylhlOVwKck/edit?usp=sharing
