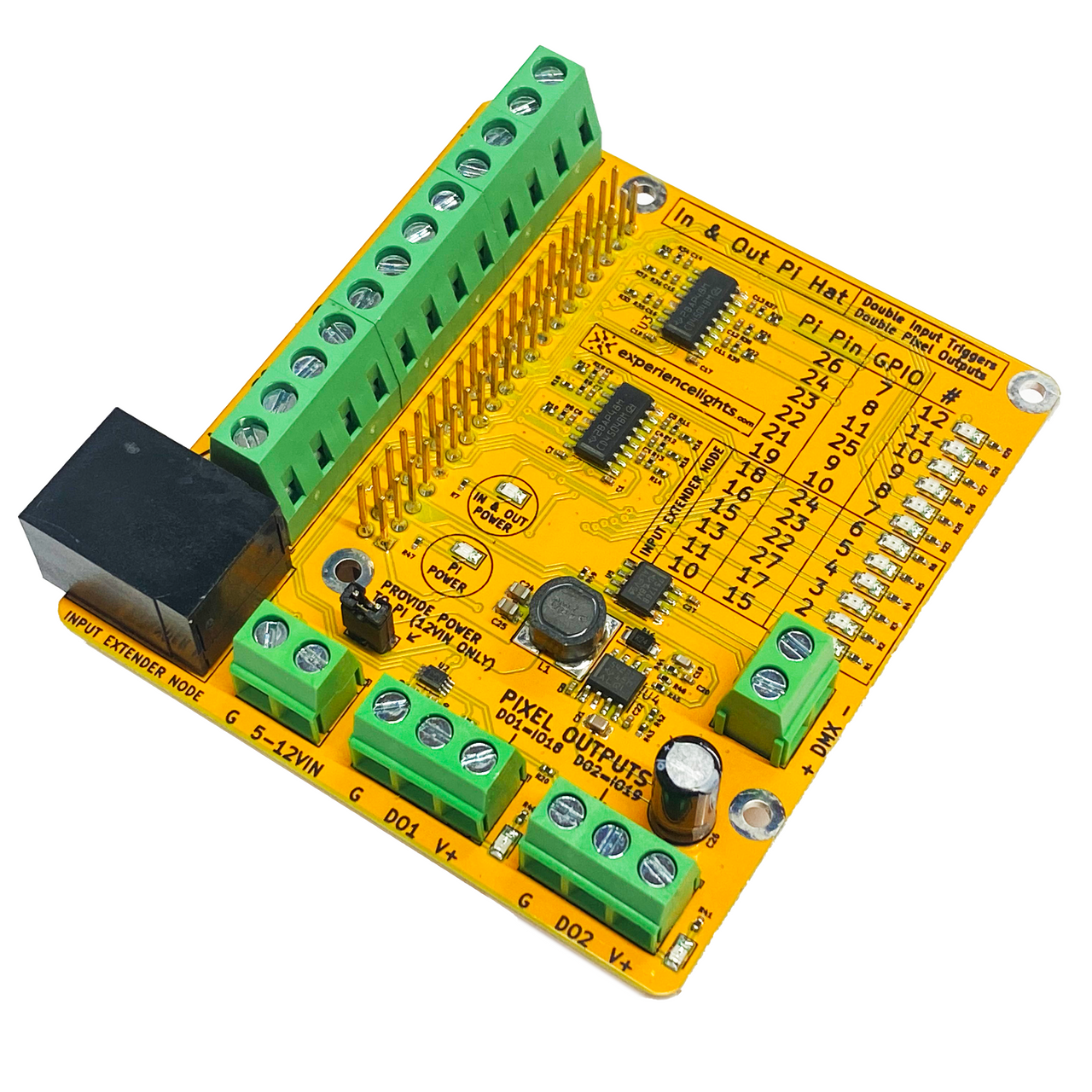

The Raspberry Pi “In & Out” Hat allows you to easily add input triggers to your display, while also providing 2 buffered & fused pixel outputs, plus DMX! This board is an evolution of our popular Input Extender Pi Hat.

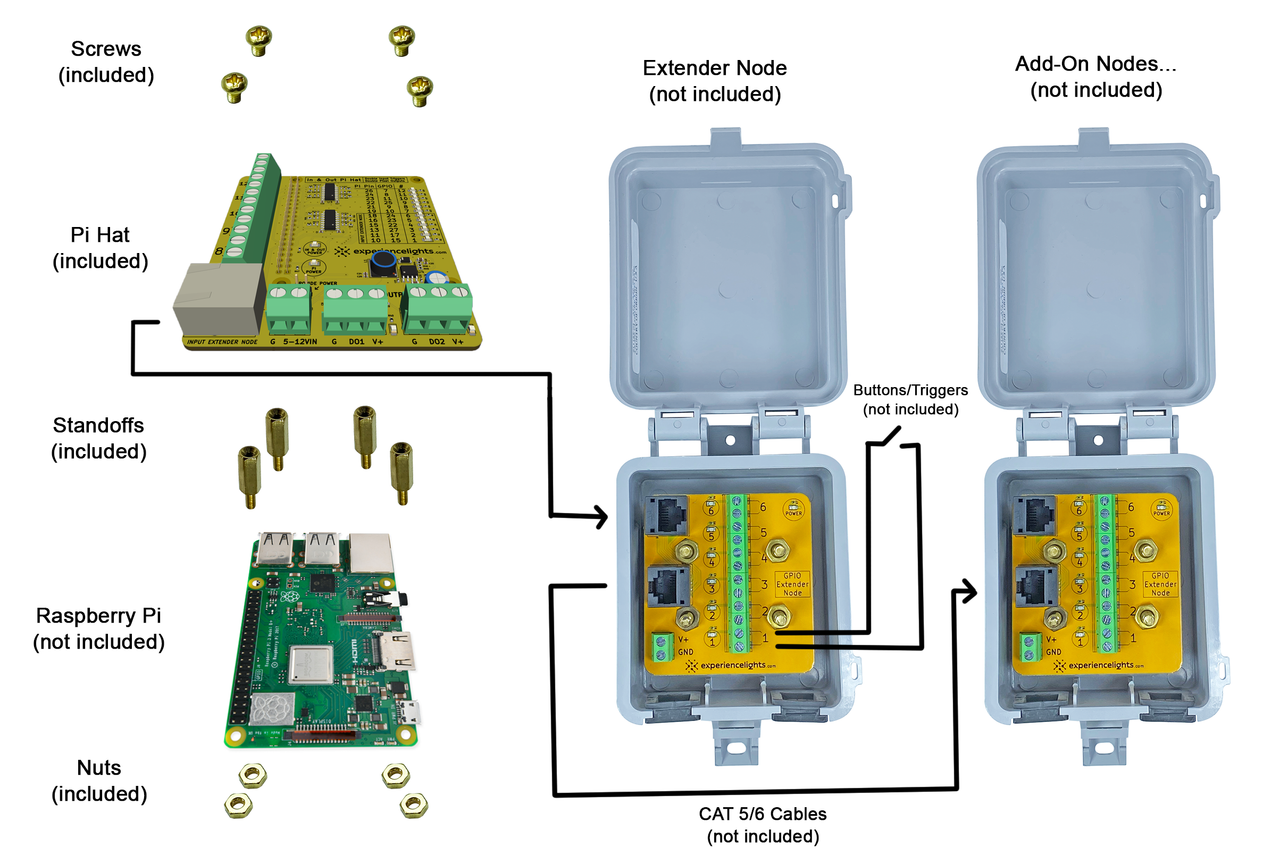

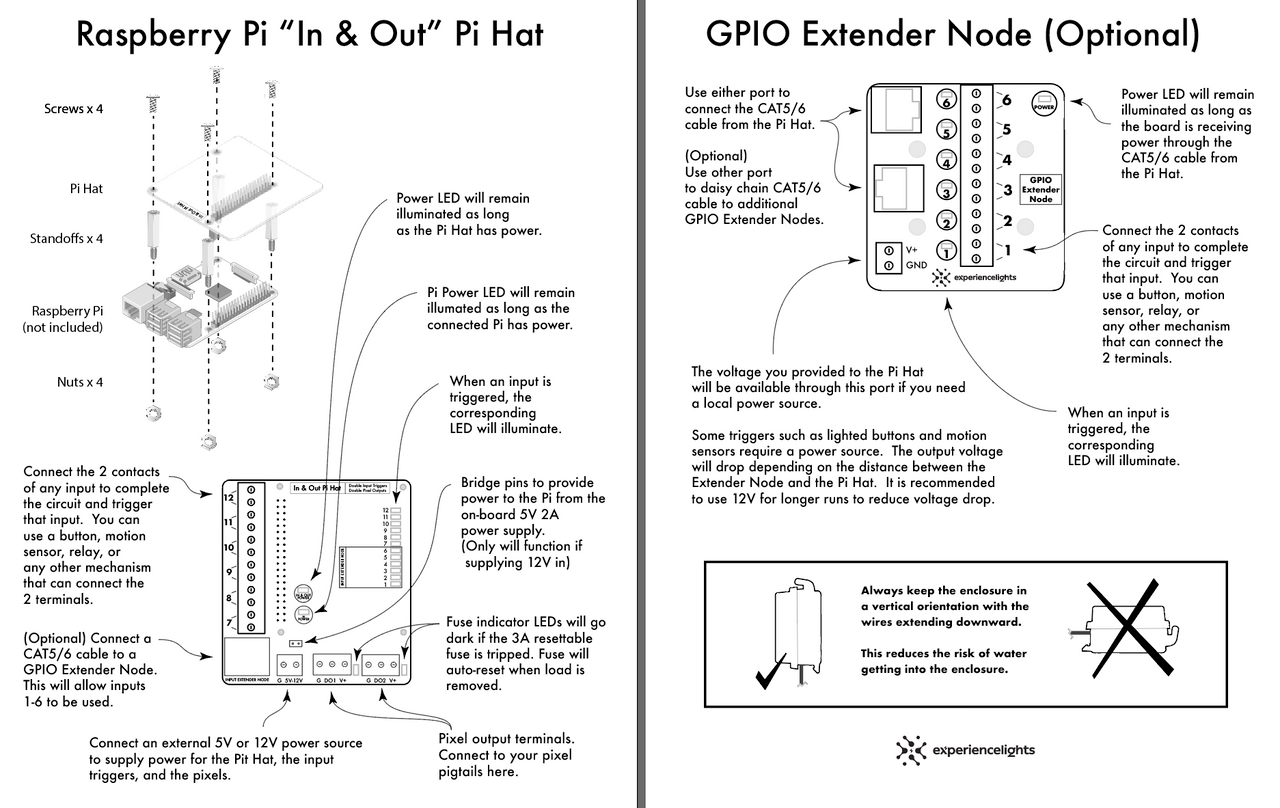

All you have to do is connect the Pi Hat on top of your Raspberry Pi, and you have access to local terminals to connect input triggers & pixel outputs. You can also use this board to DOUBLE your input triggers by connecting an Input Extender Node (not included). This board provides 6 local input triggers + optionally 6 additional input triggers on any connected input extender nodes, for a total of 12 distinct inputs.
But wait, theres more! By supplying 12V to the hat, the on-board 5V 2A power supply eliminates the need for any additional external power supplies for your Pi.
Interactive Push Button Podium build video (Featuring Input Extender Pi Hat)
In & Out Pi Hat Specifications
| Input Indicator LEDs | 12 |
| On-Board 3.3V Level Shifter | 2 |
| On-Board CAT5/6 Ports (connects to nodes – not included) | 1 |
| Power Screw Terminals | 1 |
| 2-Pin On-Board Input Screw Terminals | 6 |
| 3-Pin Pixel Output Screw Terminals | 2 |
| 2-Pin DMX Output Screw Terminals | 1 |
| RTC (Real Time Clock) Pins | [RTC Model Only] SDA (GPIO2/PIN 2) SCL (GPIO3/PIN 5) |
| Max Pixel Output Current | 3A (fused) |
| Max Current on Input Extender Bus | 1A (fused) |
| Buck Converter | 5V 2A |
| Screws, Standoffs & Nuts | 4 of each |
| Raspberry Pi | Not included |
| Enclosure | Not included |
Input Extender Node Specifications (Not Included)
| On-Board CAT5/6 Ports (connects to pi hat or more nodes) | 2 |
| On-Board Input Screw Terminals | 6 |
| Input Indicator LEDs | 6 |
| On-Board Power Screw Terminals | 1 |
| Max Current (if connecting 5V from Pi) | 500mA |
| Max Current (if connecting to external voltage source) | 1A |
| Enclosure | Custom Enclosure with Clasp |
